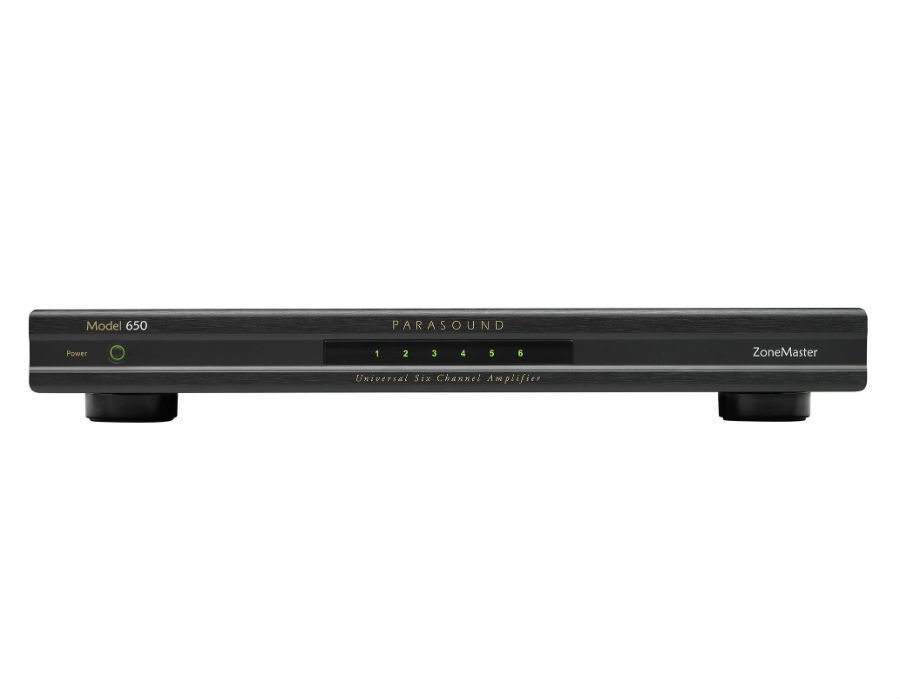

Parasound ZoneMaster 650

Parasound ZoneMaster 650

• Our ZoneMaster models are very similar in their feature sets, differing mainly in size and number of channels.
• Universal amplifier for applications from 50 to 200 watts
• 12 speaker connections (A and B outputs for all 6 channels)
• High current for stable operation at 2 Ohms
• Channel pairs are bridgeable for up to 200 watts @ 4 Ohms
• Class AB input stage plus premium Class D power stage
• Independent audio sensing triggers, one for each zone
• 3 Independent 12 volt trigger inputs, one for each zone
• Looping 12 volt trigger outputs for each zone
• Master 12 volt trigger input to turn all zones on-off
• Speaker level input for expanding systems w/out pre out jacks
• One bus input can be routed to any zone
• Bus loop output jacks for passing audio to another amp
• Mono mode combines L and R for single speaker applications
• Separate level controls for all six channels
• Detachable speaker connectors accept up to 12 gauge wire
• Short circuit and overheat protection with front panel indicators
• 0.5 watt standby power consumption meets Energy Star & EU specs
• Compact 1U chassis
