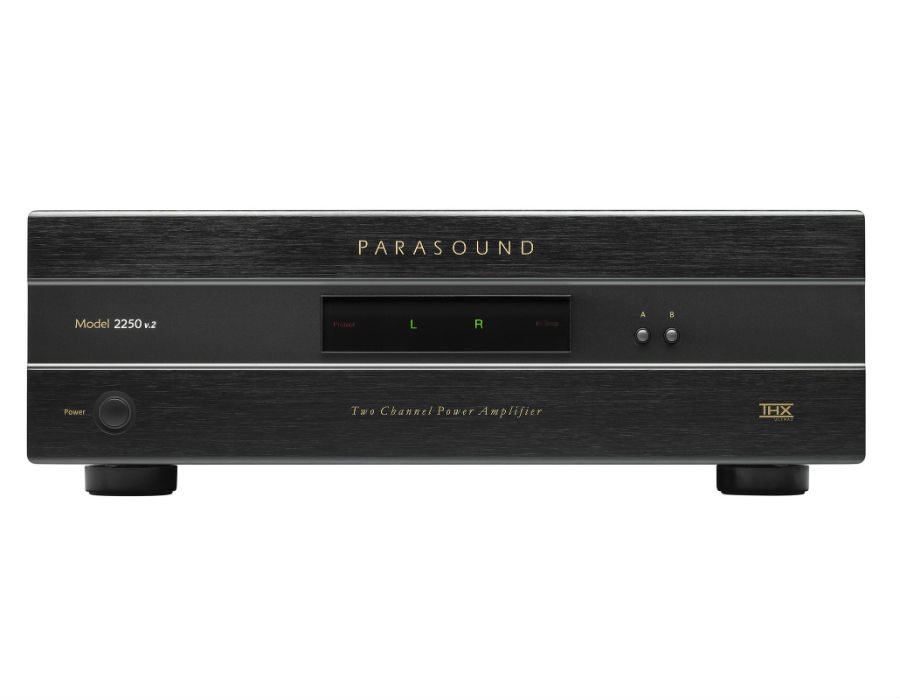

Parasound NewClassic 2250 v.2

Parasound NewClassic 2250 v.2

• THX Ultra2 certified
• 275 watts x 2 into 8 Ω (all channels driven)
• 400 watts x 2 into 4 Ω or 2 Ω (all channels driven)
• 750 watts x 1 bridged into 8 Ω or 4 Ω
• 45 amps peak current per channel
• 2 Ohm stable operation with load selector switch
• Two pairs of speaker outputs with front panel A/B buttons
• Rear-mounted lockout switch disables front A/B buttons
• High pass filter, switchable for 20Hz or 40Hz
• Automatic on/off by DC trigger with looping output
• Automatic on/off by audio signal with 2 sensitivity settings
• Fully discrete circuitry with high current toroid transformer
• Bridging switch for stereo or mono operation
• Efficient, low heat design
• DC Servo and relay protection circuits
• Rear-mounted left and right gain controls
• Standby, channel status and high temperature indicators
• Gold-plated RCA input jacks
• Heavy duty 24k gold-plated 5-way speaker terminals
• 115/230v selector on rear panel
