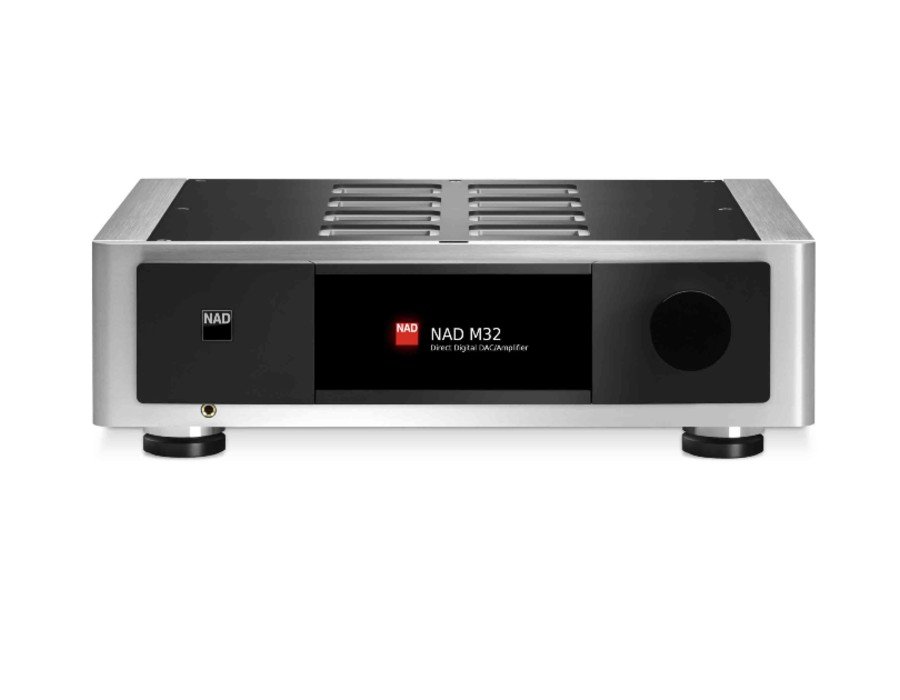

NAD M32

Redefining the Integrated Amp

The traditional integrated amp included the preamp control centre with the power amp in a single chassis. The downside of this was the reduced flexibility and possible interference by the high voltage power circuits to the highly sensitive preamp stages caused by cramming everything into one box. In the new digital age, these limitations disappear. The signal can stay in the digital domain right up to the speaker outputs, making the M32 preamp impervious to interference from the power stage. Concerns about limited flexibility are erased by NAD’s innovative Modular Design Construction (MDC), which allows a greater density of inputs as well as the flexibility to upgrade complete circuits as future technologies unfold.

Modular Design Offers Maximum Flexibility

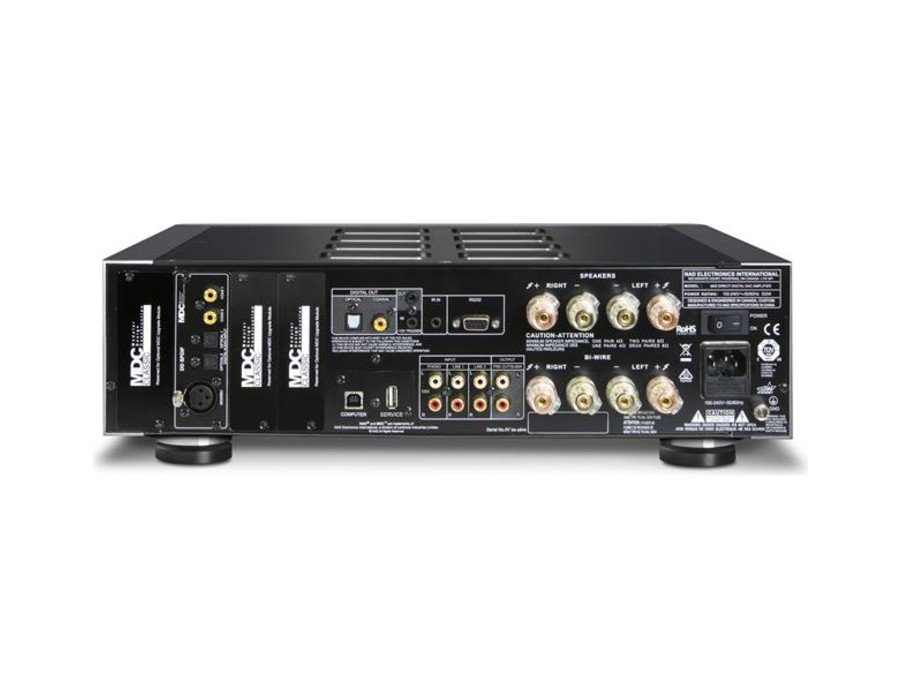

By placing inputs and associated circuitry on uniform upgradeable modules, the M32 can be custom tailored to cater to your exact requirements. There are a total of four MDC slots, with three being available for expansion. The preinstalled module is the SPDIF Module, including AES/EBU, 2 x Coax and 2 x Optical, all 24/192 capable. Additionally there is a USB B port for connecting computers as well.

The Preamp is Replaced By Software

When it comes to the M32 we have combined all preamp and power amp functions into a single amplifying stage controlled by software. Highly advanced mathematics determines all control functions including volume and filters. This produces a dramatic reduction in noise and distortion, bringing you much closer to both the music and the performers. Traditional volume controls that change the gain in an active analogue circuit cannot approach the transparency of the M32. It also allows ‘perfect’ tone controls that only change tone, without adding phase shift or distortion. You can also easily bi-wire or add a subwoofer(s) with the built-in electronic crossover.
