Bowers & Wilkins CCM664SR

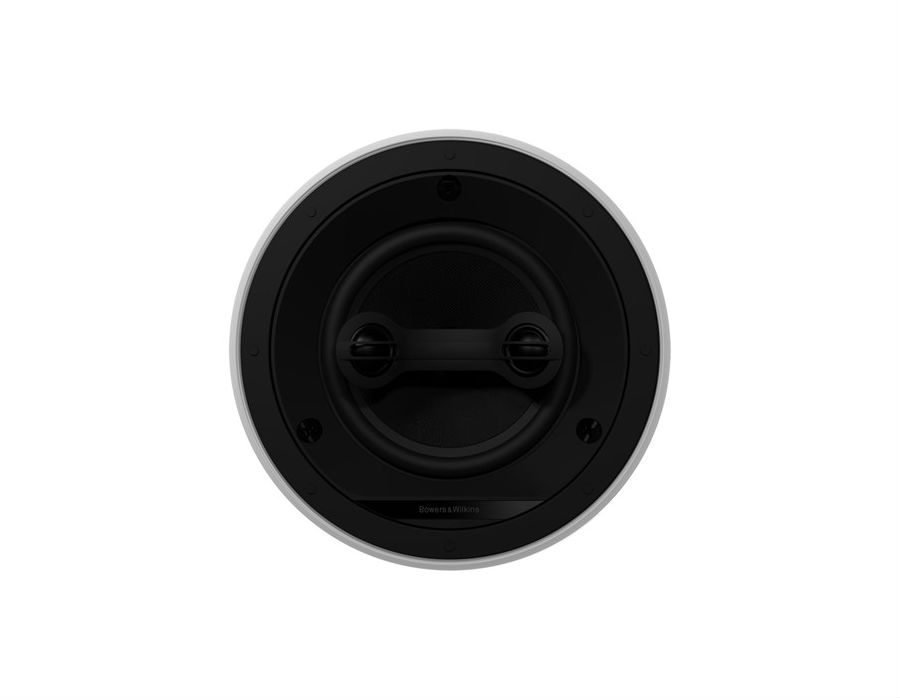

Bowers & Wilkins CCM664SR In-Ceiling Speaker
The CCM664SR is a dual, two-way ceiling speaker combining two offset tweeters and a twin voice coil bass/midrange driver to allow either for a combined stereo signal from one speaker, or for rear-channel surround sound.
Like the CCM663SR, this is a dual, two-way ceiling speaker combining two offset tweeters and a twin voice coil bass/midrange driver to allow either for a combined stereo signal from one speaker, or for rear-channel surround sound. This speaker features a 150mm (6in) woven glass fibre cone bass/midrange driver and soft dome tweeters, as well as a two-position stereo/surround switch to instantly change between modes.
The CCM664SR is a dual, two-way ceiling speaker featuring a 150mm(6in) woven glass fibre cone bass/midrange driver and two offset soft dome tweeters. The twin voice coil bass/midrange driver and tweeters allow
a stereo signal to be combined to facilitate the use of just one ceiling speaker in a single installation area without the loss of one audio channel.
The CCM664SR also includes a two-position stereo/surround switch to instantly make the speaker very suitable to be used as a surround channel. Incorporating QuickDogs™ and plug-and-play functionality it is quick and easy to install.
CCM664SR Technical Specifications
Description
2-way dual channel in-ceiling system
Drive Units
1x 150mm (6in) black glassfibre cone bass/midrange
2x 20mm (1in) soft dome tweeter
Frequency Range (-6dB)
48Hz – 30kHz
Sensitivity SPL (2.83V, 1m)
88dB (both channels driven)
Impedance Nominal (min)
8Ω (4Ω)
Power Handling
25W-80W (per channel)
