Bowers & Wilkins CCM663SR

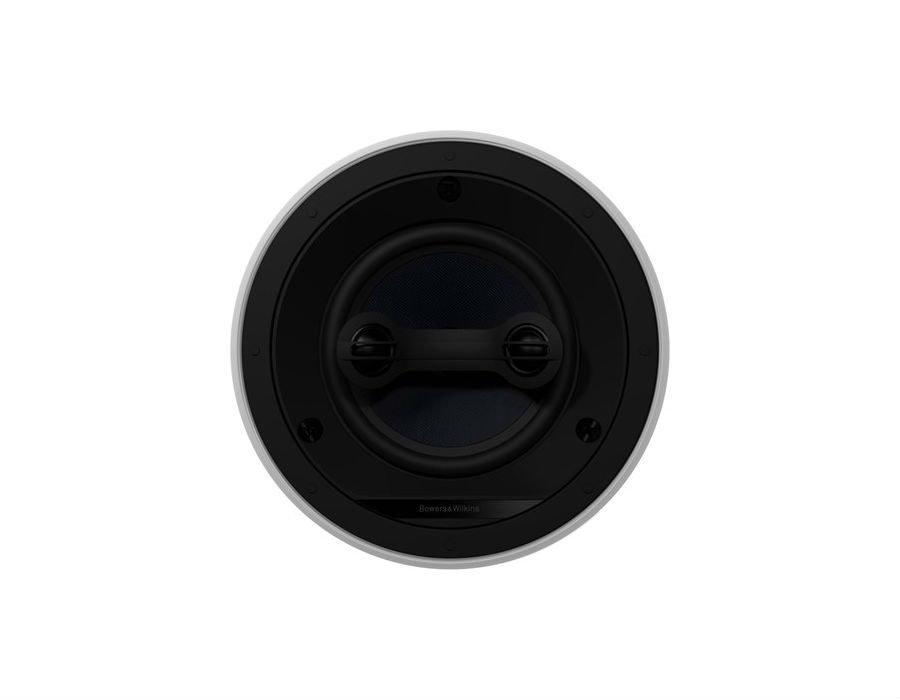

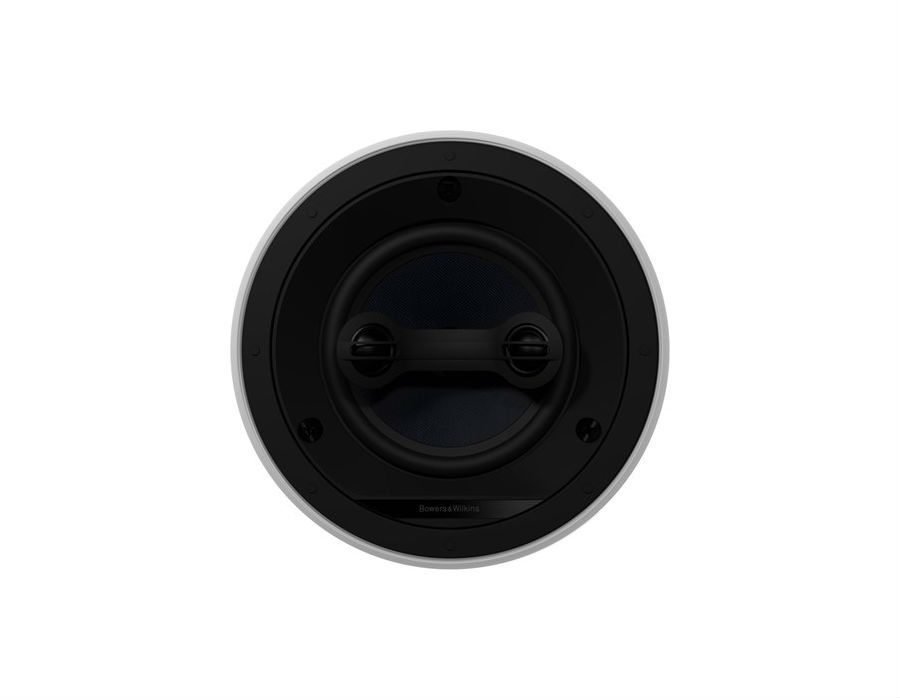

Bowers & Wilkins CCM663SR In-Ceiling Speaker
CCM663SR a high-performance, in-ceiling surround speaker that’s ideal for the surround sound channel in a home theatre set-up, or for bringing stereo sound to rooms where space is limited. The speaker brings together a twin voice-coil 150mm (6in) Kevlar bass/midrange driver with two 25mm (1in) soft dome tweeters. This combines the stereo signal, allowing the use of just one ceiling speaker without the loss of one audio channel. The speaker can be changed from stereo to surround sound mode at the flick of a switch.
The combination of convenience and performance that is a feature of the entire custom installation range is no better demonstrated than by the CCM663SR ceiling speaker. It marries a woven Aramid Fibre coned twin voice-coil 150mm (6in) bass/midrange driver with an offset array of two 25mm (1in) soft dome tweeters. Thanks to its highly accurate and natural sound, Aramid Fibre features on our most advanced high performance hi-fi speakers and it brings the same qualities to the CCM663SR. The twin voice coils and tweeters combine the stereo signal to enable the use of just one ceiling speaker in an installation zone without the loss of one audio channel. The CCM663SR also includes a two-position stereo/surround switch to instantly make the speaker very suitable to be used as a surround channel.
CCM663SR Technical Specifications
Description
2-way dual channel in-ceiling system
Drive Units
1x 150mm (6in) blue Aramid Fibre cone bass/midrange
2x 20mm (1in) soft dome tweeter
Frequency Range (-6dB)
48Hz – 30kHz
Sensitivity SPL (2.83V, 1m)
89dB (both channels driven)
Impedance Nominal (min)
8Ω (4Ω)
Power Handling
25W-80W (per channel)
