Bowers & Wilkins CCM663RD

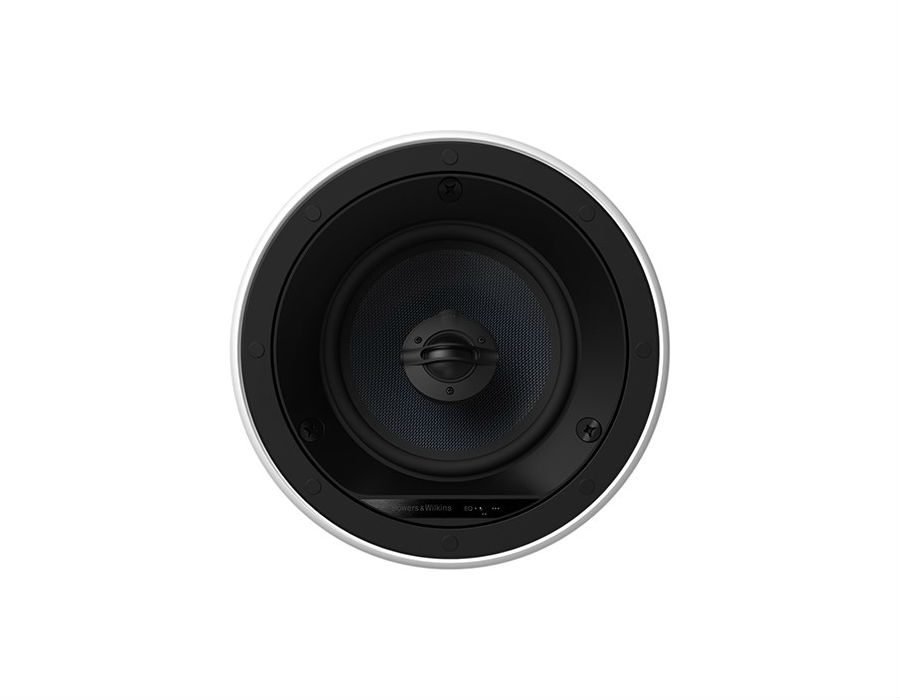

Bowers & Wilkins CCM663RD In-Ceiling Speaker
CCM663RD is a high-performance 6-inch in-ceiling speaker with a difference. The ‘RD’ in the name stands for Reduced Depth, and this incredibly shallow speaker is perfect when you need to deliver great sound from a tight space.
A shallower cone and a redesign of the easy-fit QuickDogs™ frame reduce this speaker’s depth to a very slim 92mm, while retaining everything that makes the CCM663 such a great in-ceiling speaker.
The dark Kevlar® cone of the bass/mid driver delivers a clean, detailed response, and combines with the pivoting aluminium tweeter for adjustable off-axis treble and three-position EQ, to make an incredibly versatile custom speaker.
If preferred, the supplied round grille can be replaced with an optional square CCM663 grille.
RD stands for Reduced Depth – so this speaker will fi t into tighter spaces than the standard CCM663. A shallower cone and a redesign of the easy-fi t QuickDogs™ frame reduce depth to a more usable 92mm, while retaining everything that makes the CCM663 such a great inceiling speaker.
The familiar, yet discreet, dark blue Kevlar® cone of the bass/midrange driver delivers a stunningly clean, detailed response. This, combined with the pivoting aluminium dome tweeter for adjustable off-axis treble response and three-position EQ, make this one of the most versatile custom speakers around. If preferred, the supplied round grille can be replaced with an optional, square CCM663 grille.
CCM663RD Technical Specifications
Description
2-way in-ceiling system
Drive Units
1x 150mm (6in) blue Kevlar® cone bass/midrange
1x 25mm (1in) Nautilus™ swirl loaded aluminium dome tweeter
Frequency Range (-6dB)
35Hz – 50kHz
Sensitivity SPL (2.83V, 1m)
86dB
Impedance Nominal (min)
8Ω (4.8Ω)
Power Handling
25W-100W
