Bowers & Wilkins CCM663

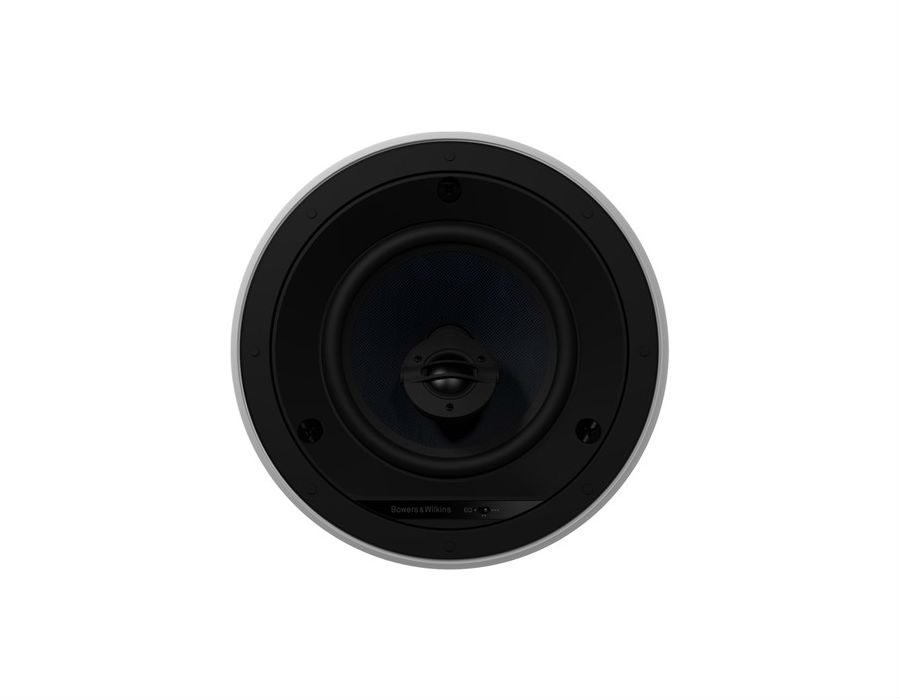

Bowers & Wilkins CCM663 In-Ceiling Speaker
One of the challenges of custom installation is generating great sound in those hard to access places. Perfect for small spaces, these speakers ensure that you can have fantastic sound everywhere you want it.
See nothing, hear everything
The CCM663 is a true high performance ceiling-mount speaker. The tweeter has a 25mm (1in) aluminium dome and its housing pivots for adjustable off axis treble response. The bass/midrange driver’s die-cast chassis provides extra rigidity which results in a cleaner, faster bass, and a three-position EQ switch for a better off-axis response. The blue Aramid Fibre cone means that the unit is well hidden behind the grille but still produces a remarkably clear and dynamic sound. Incorporating QuickDogs™ and plug-and-play functionality it is quick and easy to install.
CCM663 Technical Specifications
Description
2-way in-ceiling system
Drive Units
1x 150mm (6in) blue Aramid Fibre cone bass/midrange
1x 25mm (1in) Nautilus™ swirl loaded aluminium dome tweeter
Frequency Range (-6dB)
45Hz – 50kHz
Sensitivity SPL (2.83V, 1m)
88dB
Impedance Nominal (min)
8Ω (4.5Ω)
Power Handling
25W-130W
