Bowers & Wilkins CCM632

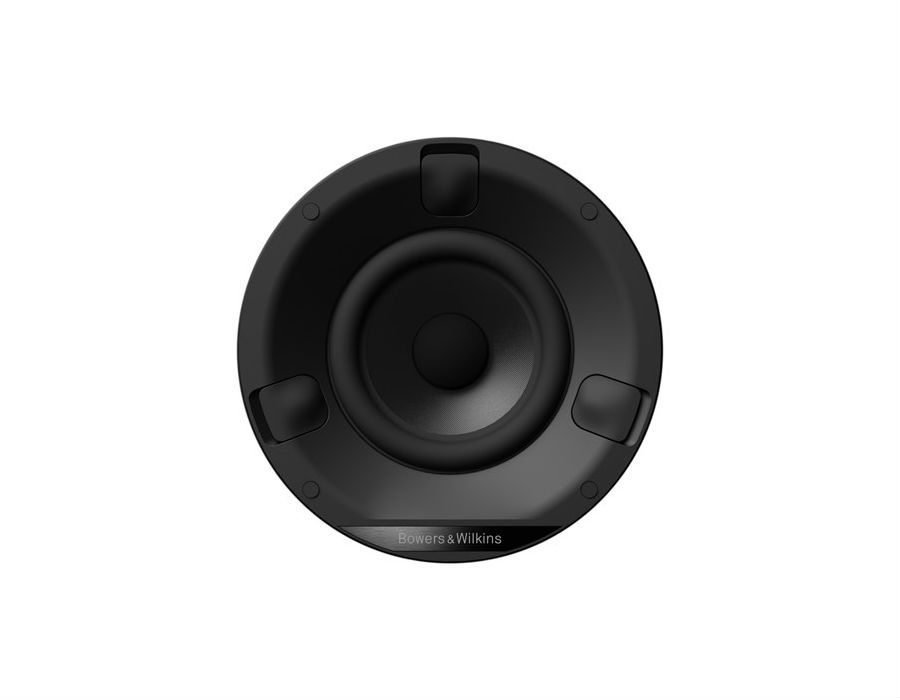

Bowers & Wilkins CCM632 In-Ceiling Speaker
Our Performance Series delivers fantastic sound in an incredibly discreet package. These loudspeakers are engineered by the same team who creates the loudspeakers used in some of the world’s most advanced recording studios.
Getting small install speakers right is hard. They’re great for tight squeezes or satellite placement. But usually either the bass is too mild or the mid-range suffers thanks to the tweeter placed in front of it.
The CCM632 squeezes a full-range driver with beautifully well-balanced sound into a 150mm diameter install space. The space taken may be small, the sound is anything but.
CCM632 features an integral enclosure to avoid acoustic bleed. And they are simple to instal in a wide variety of places, and will work in almost any panel thickness.
See nothing, hear everything In-ceiling speakers, designed to squeeze into small spaces or be used in multiples for diffuse, background sound, are really difficult to get right. If the driver’s too small, there won’t be enough bass without adding a bulky subwoofer, but the common alternative is a 2-way where the tweeter sits in front of a small bass/midrange driver. The problem with these is the driver fires around the tweeter’s body, inevitably leading to colouration. The new Bowers & Wilkins CCM632 is a single 75mm (3inch) full-range driver with a beautifully wellbalanced sound, that sidesteps traditional small speaker issues yet still takes up less than 150mm (6”) diameter space installed.
The CCM632 also features Bowers & Wilkins new and innovative ZipDogs™ fixing method. These make short work of installation and cope with almost any thickness of mounting panel. Each speaker comes with an integral enclosure to minimise acoustic bleed into adjoining spaces. Speakers are supplied in pairs, with each pack including round and square magnetically fixed, and fully customisable, grille/bezel assemblies.
CCM632 Technical Specifications
Description
Single driver in-ceiling system
Drive Units
1x Ø75mm (3 in) paper cone full-range
Frequency Range (-6dB)
100Hz – 17kHz
Frequency response (+/-3dB)
112Hz – 16kHz
Sensitivity SPL (2.83V, 1m)
84dB
Impedance Nominal (min)
8Ω (5.0Ω)
Power Handling
10W – 60W
